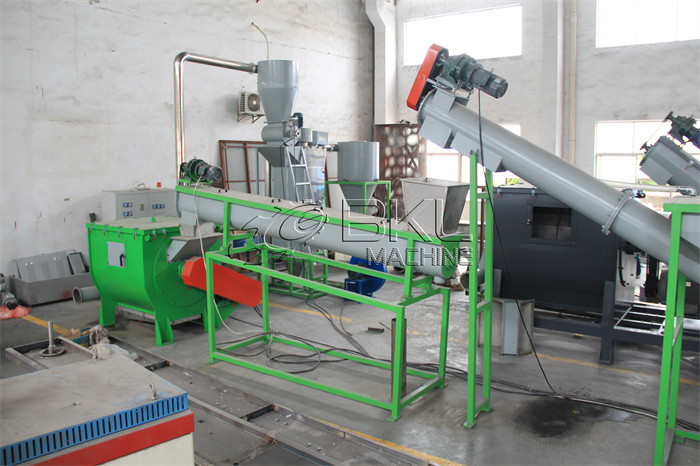

300kg/h ABS Washing Machines In Plastic Recycling Line
This unit is mainly for ABS plastic: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and ABS after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.
Details:
| S/N | Item | Requirement |
| 1 | Capacity: | 300kg/hr |
| 2 | Raw material: | Post-consumer ABS |
| 3 | Final Products: | Recycled Clean flakes with below parameters: |
| Flakes size | 100 mm |
| Moisture Content | 1~3% |
| Total impurity | 200ppm |
| 4 | Working condition: | Warehouse/workshop: Straight line dimension: 32x3.5x4.5m (also we can install the line as “U” or“L” shape) Plant height: >5m Area: >500 ㎡ |
| Power supply:Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
| Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine. Air source: 0.6-0.8MPa All water supplying and draining piping Water supplying and water drain pools underground Water treatment system can buy optional Steam supplying can buy optional to instead of electricity heating Other installation facility and tools Sound proof for the crusher and other machines optional choose |
| 5 | Energy consumption: | Installed Power about:88KW Actual consumption 88*70%=60KW Consumption: 10 tons/h(Proposed water-treatment project) Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply Labor requests:2-3 persons. |
Machine parts list:
| NO | Machine name | Quantity | Remark | |
| 1 | Belt Conveyor | 1set | Necessary | |
| 2 | Friction washer1 | set | Necessary | |
| 3 | Wet Crusher | 1set | Material of blades: SKD-11 | |
| 4 | Lower Speed Friction Washer | 1set | Necessary | |
| 4 | Floating Washer1 | set | Necessary | |
| 6 | Screw Conveyor | 1set | Necessary | |
| 7 | blower system | 1set | Necessary | |
Belt conveyor: conveying dirty plastic film or bags into crusher. If too much scrap iron, metal detector may be needed.
Crusher: crushing with water, cutting ABS or bags into small pieces.
Screw loader: load ABS flakes into the next step
High-speed friction washing machine: wash out the sand, soil and loading the material in ABS flakes
Washing tank: separate the sand, soil and other dirties from ABS
Horizontal dewatering machine: remove the water from the ABS flakes
